Metal Forming Systems, Inc. USA

NAGFORM_SHEET ..... NAGSIM_SM.2D/3D

Our Products & Services

We develop software for creating concepts on forming sheet metal parts and validating the concepts using FEA simulation programs. We also provide consulting services and training in sheet metal forming

'NAGFORM_SHEET' Software Program

NAGFORM_SHEET is a rule based software program for designing forming progression of deep drawn sheet metal parts. It allows the user to capture manufacturing knowledge and use it to design forming progressions in minutes for similar parts. The sequence designs created in NAGFORM_SHEET can be quickly validated in NAGSIM_SM.2D FEA simulation program. The NAGFORM_SHEET program is available as a stand-alone software and also an Add-In for SolidWorks.

Sequence Design for Deep DrawN Parts

NAGFORM_SHEET Parts & Sequences

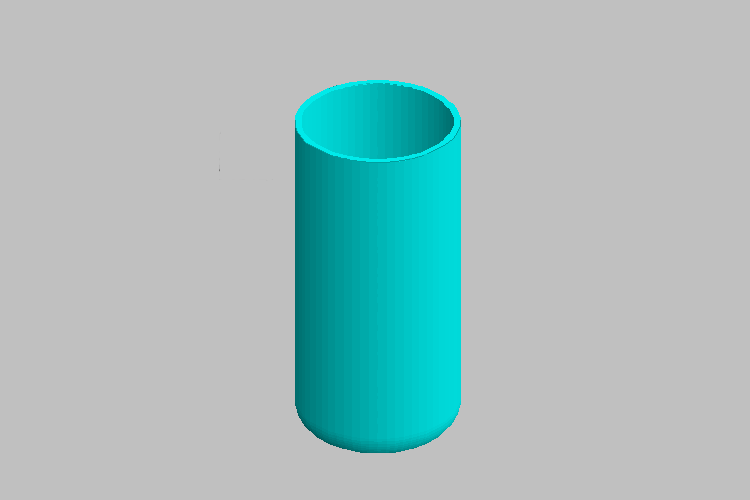

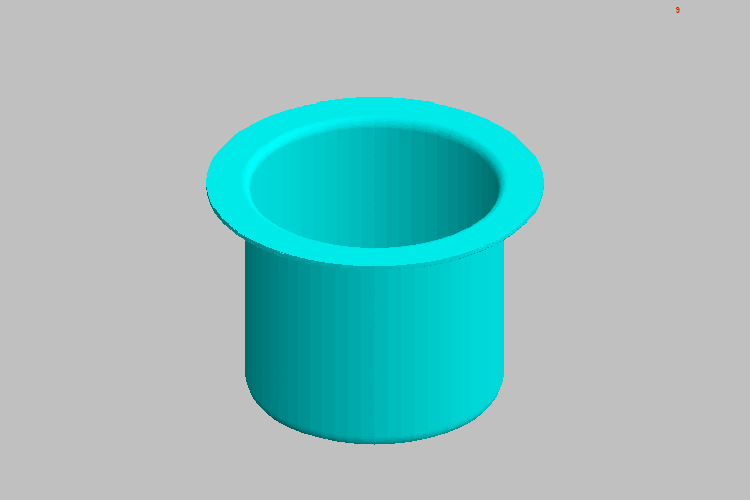

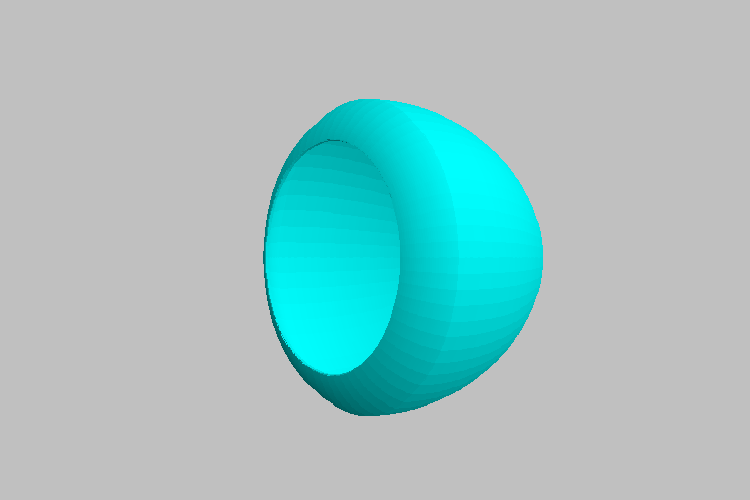

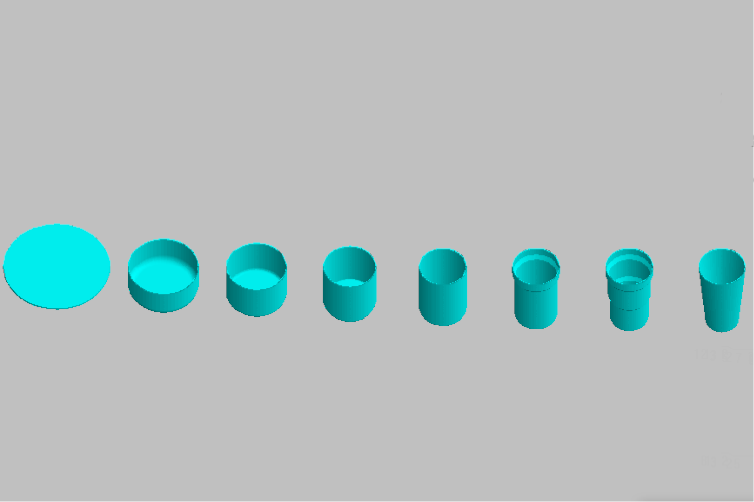

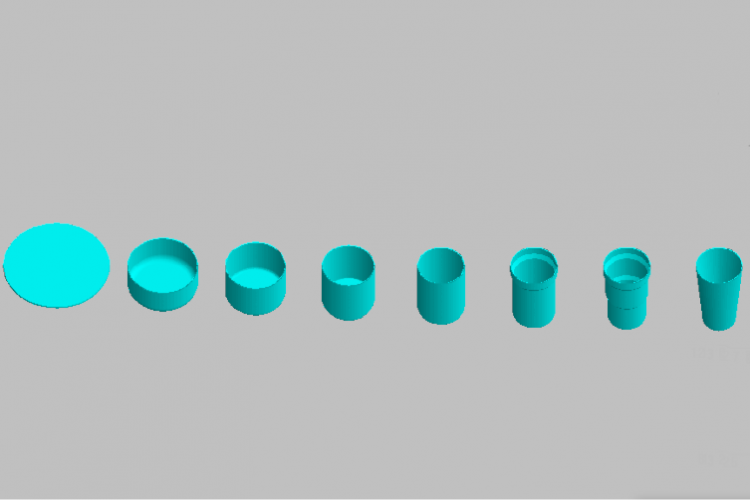

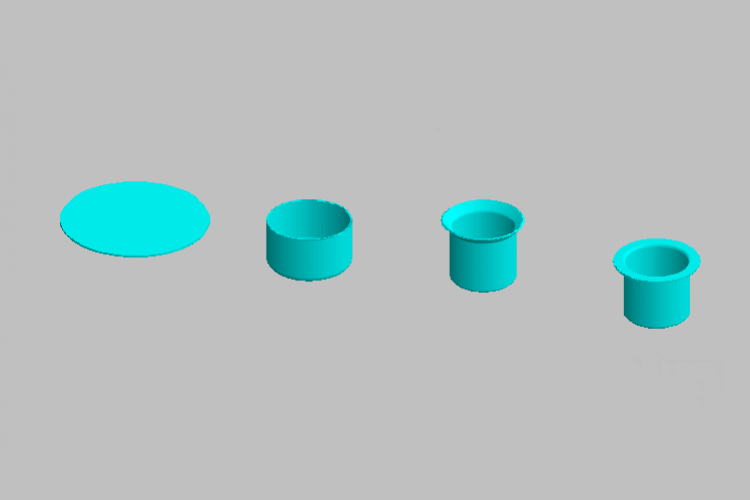

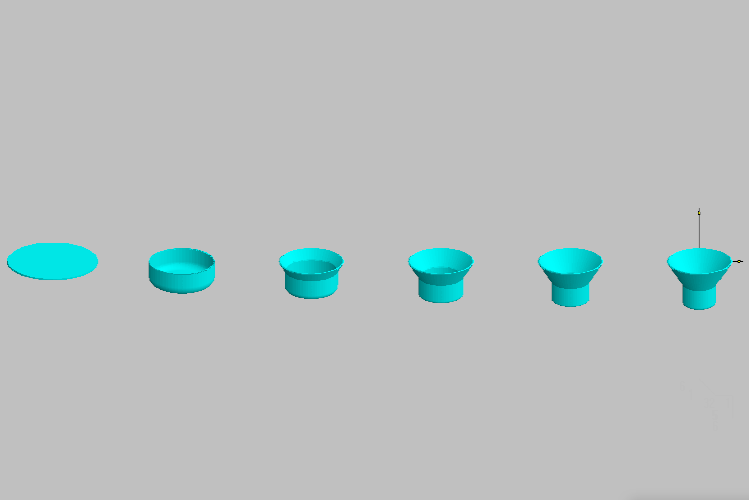

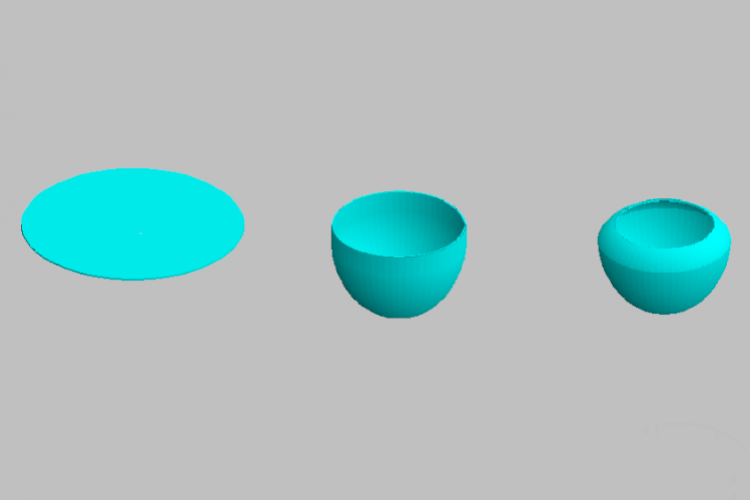

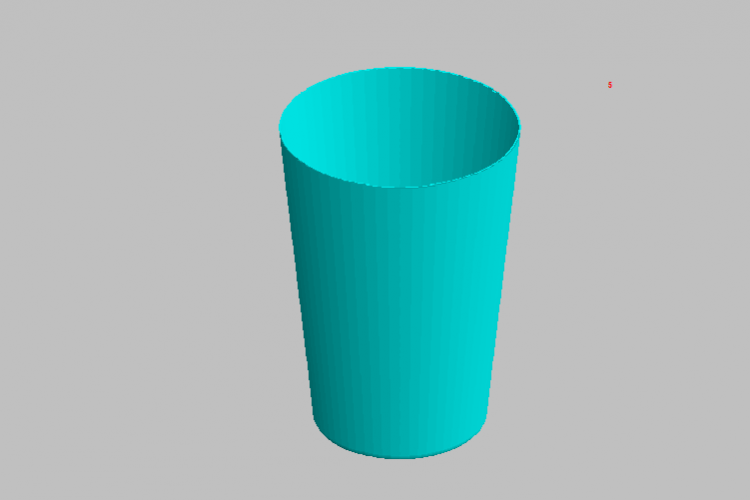

Examples of types of deep drawn parts analyzed by NAGFORM_SHEET software

NAGFORM_Sheet Video

This training video shows how to construct a round part in NAGFORM_SHEET and get sequence designs for forming that part in minutes.

Play Video

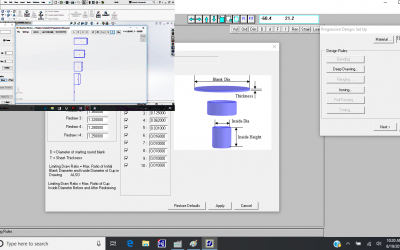

'NF_Sheet' Add-In for SolidWorks

NF_Sheet Add-In program is a version of NAGFORM_SHEET that works within SolidWorks program. The part model can be constructed within SolidWorks or can be imported from the NAGFORM_SHEET file. The sequence design is created within SolidWorks using forming rules and design logic of experienced designers.

Sequence Design for Deep DrawN Parts

NAGFORM_SHEET Solidworks Add-in

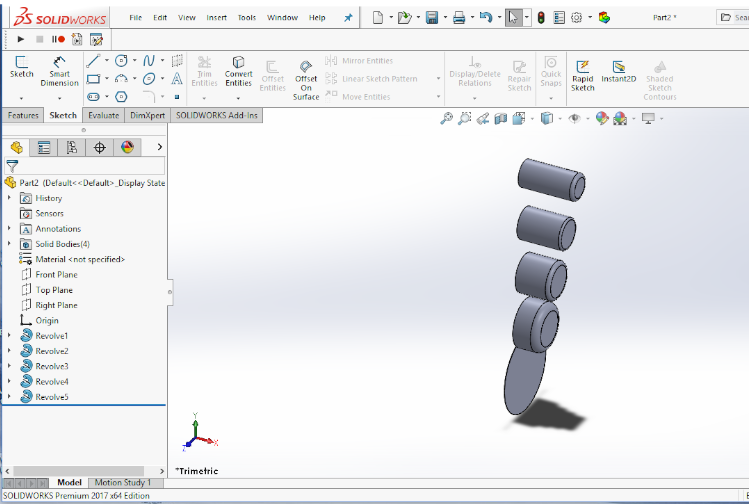

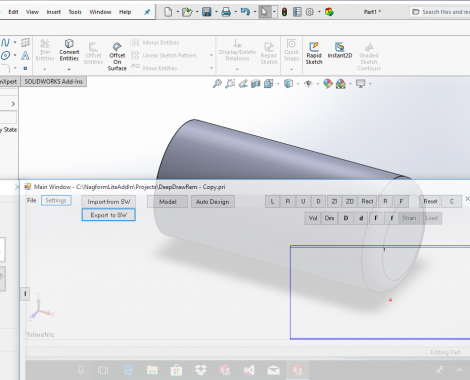

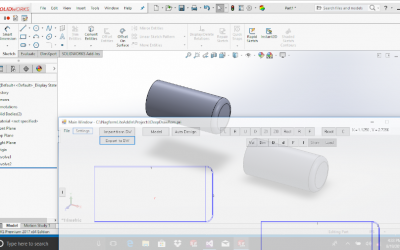

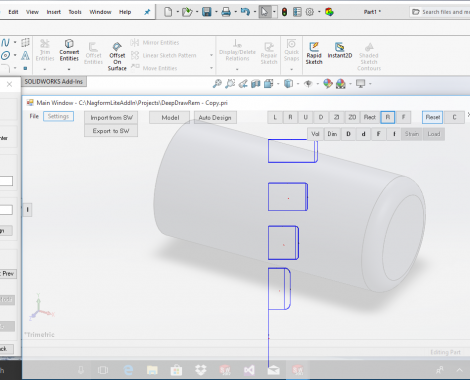

Example of a deep drawn cup analyzed within SolidWorks.

'NAGSIM_SM.2D' Simulation Program

NAGSIM_SM.2D is a finite element software program for the computer simulation of two dimensional sheet forming processes such as deep drawing, stretching and bending. It can simulate large plastic deformation of the deforming part as well as elastic deformation of the tools. It compliments NAGFORM_SHEET program for obtaining the forming progression for deep drawn parts. NAGFORM_SHEET program uses design logic, forming rules and simple analyses to come up with forming design concepts. NAGSIM_SM.2D can be used to validate and improve the concept designs.

Simulation of 2D Deformation Processes

NAGSIM_SM.2D FEA Program

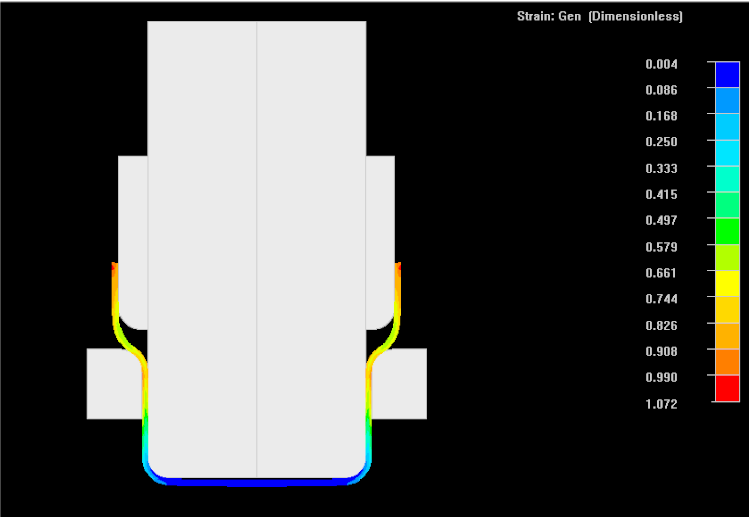

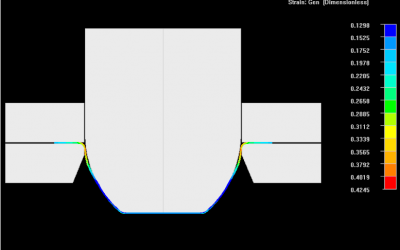

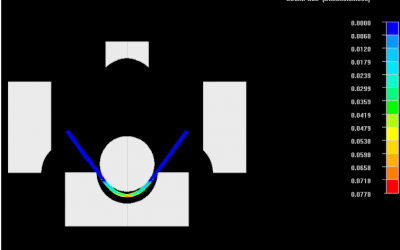

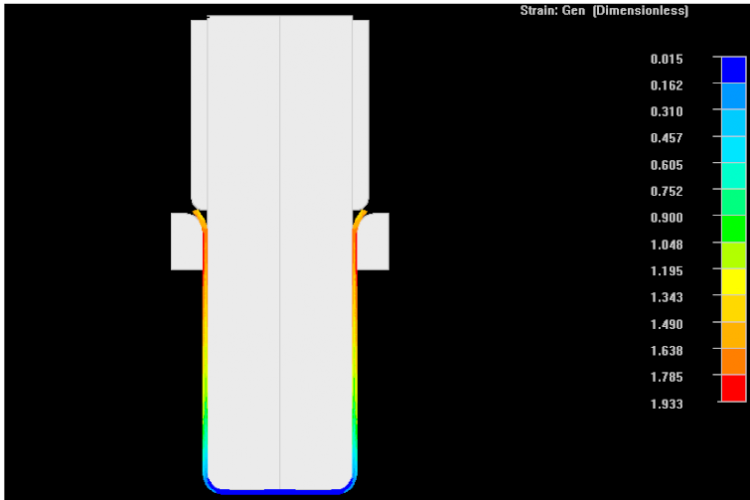

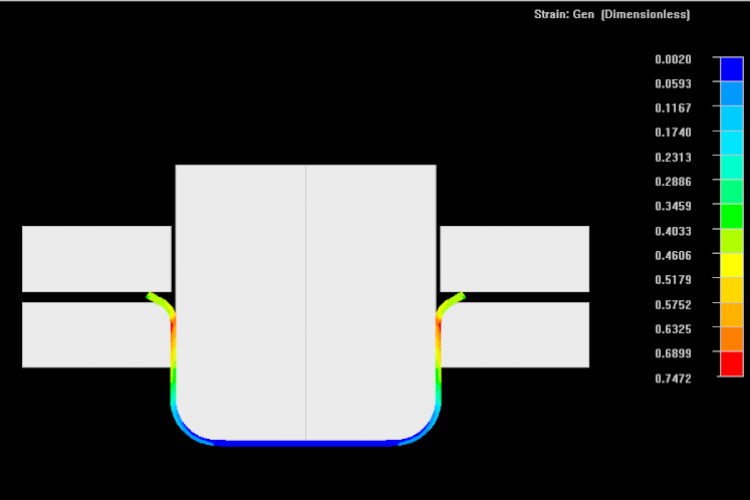

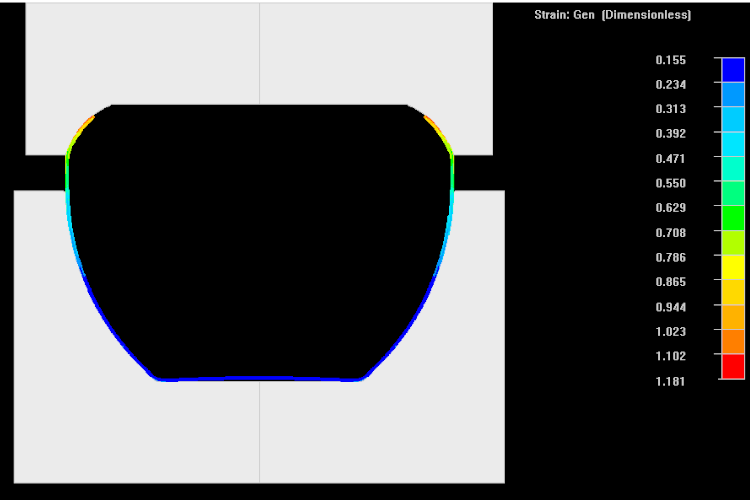

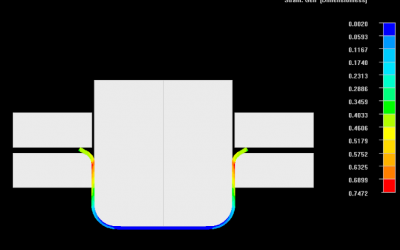

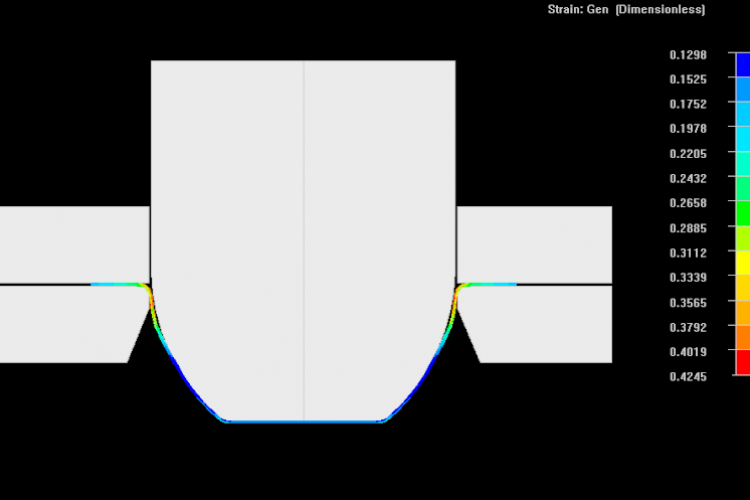

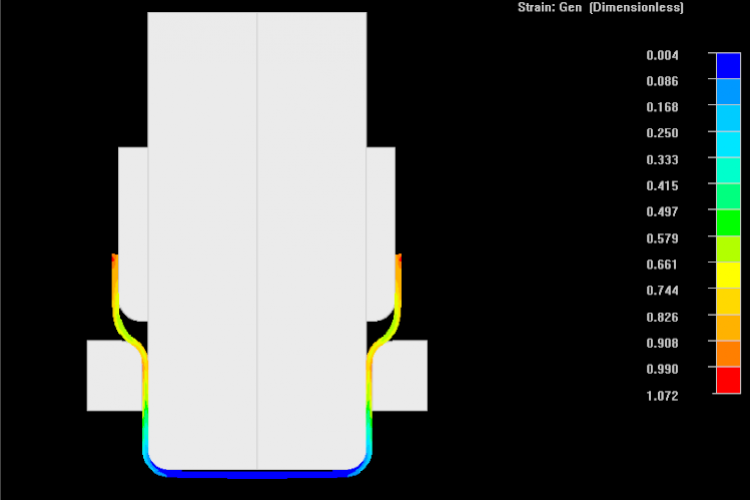

Examples of simulating forming of round sheet metal parts using Nagsim_SM.2D

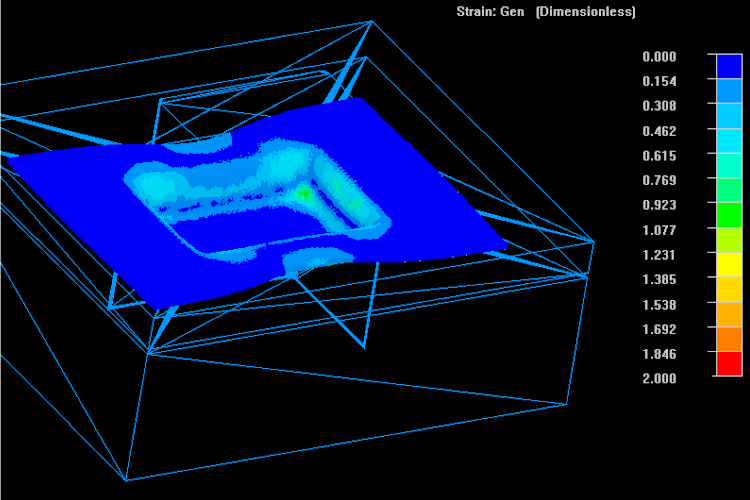

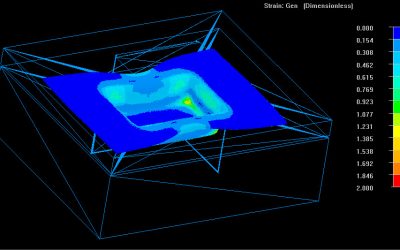

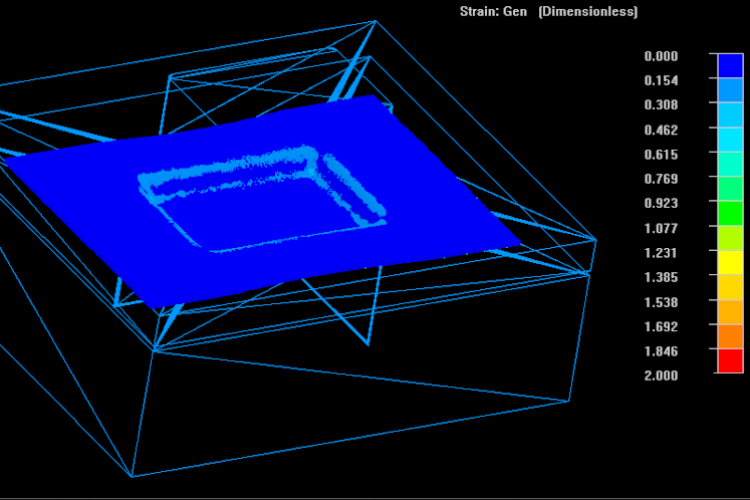

NAGSIM_SM.3D Beta Version

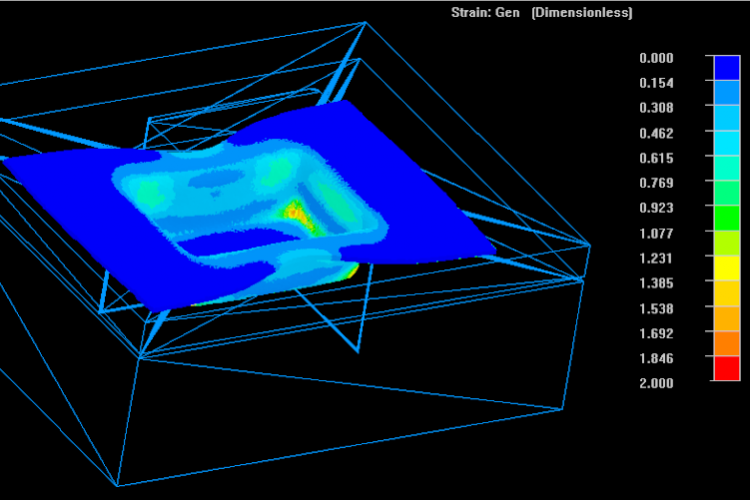

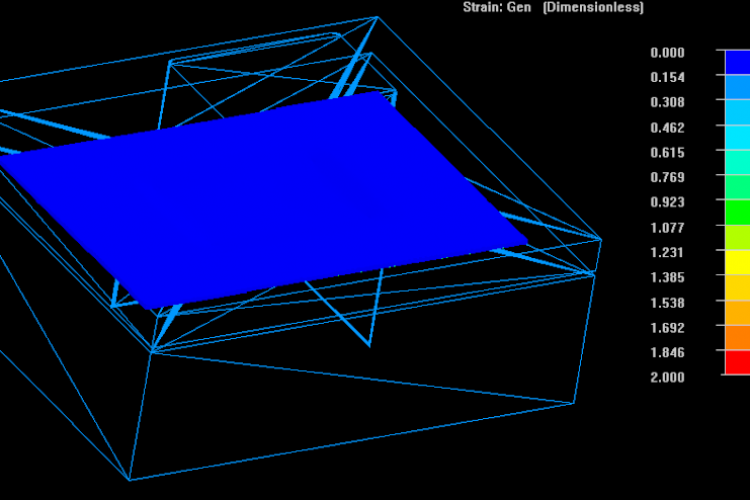

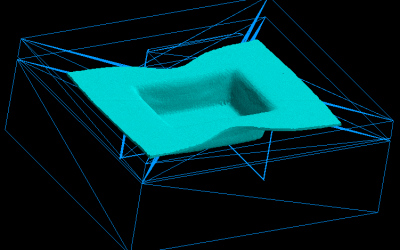

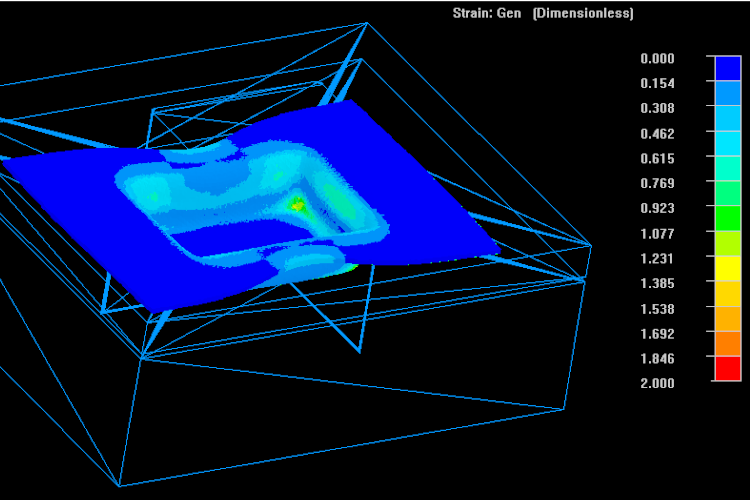

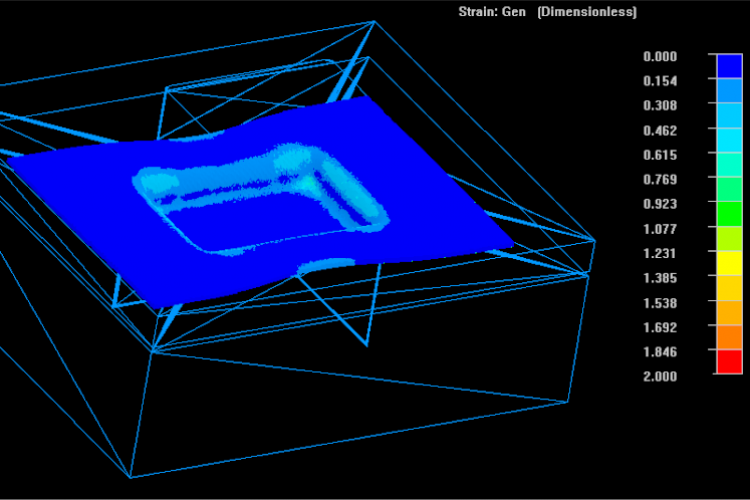

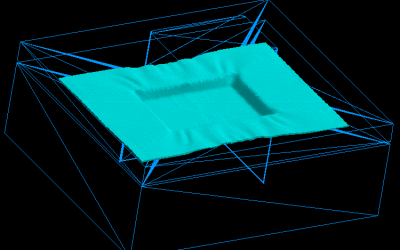

NAGSIM_SM.3D uses an incremental finite element analysis solver that is specifically designed for sheet metal forming processes. The program uses two types of elements , a pressure modified tetra element and a brick element for automatic meshing and analysis. NAGSIM_SM.3D can predict deformation in any three dimensional sheet forming process. However, the solver uses a Rigid-Plastic formulation that does not include elastic deformation of the sheet.
